Need help with screw size

Jolive

Forum Newbie
Joined
Mar 30, 2022
Threads
1
Messages
3
I have this mower, but have lost the shroud screws. Any help on finding the correct size replacement?Screenshot_20220330-185104_Google.jpg


ILENGINE

Lawn Pro
Joined
May 6, 2010
Threads
30
Messages
9,005
Lets start with both the model number of the engine and the model number of the mower. That have used both phillips headed and hex headed screws to secure those in the past.


StarTech

Lawn Pro
Joined
Feb 19, 2020
Threads
44
Messages
6,980
If remember correctly they are Briggs PN 691138 which a plastic mounting screw with a double thread design. But there is one other screw design for mounting into metal.


Scrubcadet10

Moderator
Staff member
Joined
Sep 24, 2017
Threads
219
Messages
5,970
I've had maybe a handful of engines come on with the appropriate screws on the recoil cover. Usually a Phillips wood screw in its place.


sgkent

Lawn Addict
Joined
Sep 27, 2017
Threads
16
Messages
1,373
Briggs model # =
Crafrsman mower part number =

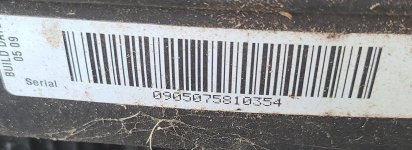

Serial number if known please =

should be on a tag on the side of the engine shroud if I recall


StarTech

Lawn Pro
Joined
Feb 19, 2020
Threads
44
Messages
6,980
Briggs 128T02-1270-B1
PN 691138 Screw


ILENGINE

Lawn Pro
Joined
May 6, 2010
Threads
30
Messages
9,005
Looks like it should be part number 690700


Looks like the Craftsman parts diagram is calling for the 690700 and the briggs diagram is saying it is 691138 but both were used on that model of briggs engine depending which decorative cover was used.

Last edited:

StarTech

Lawn Pro
Joined
Feb 19, 2020
Threads
44
Messages
6,980

The 690700 is for the following cover.


ILENGINE

Lawn Pro
Joined
May 6, 2010
Threads
30
Messages
9,005
