Need help setting timing on Makita four stroke bush cutter

[silveris]

Hello there, I am hoping someone can help me with setting the timing on my bush cutter, a Makita EBH341U 4-stroke.

I was silly and did not mark the crank position when taking it apart to change the piston rings, and now I am a bit stuck. There are alignment marks on the flywheel, but not sure which mark goes on which side.

If anyone could help, it would be appreciated!

Thanks!



[mechanic mark]

https://media.makita.co.nz/_media/user-manuals/E/EBH341U-UG.pdf

makita technical support - Google Search

Give Tech Support a ring regarding timing marks.



[silveris]

Hello there, unfortunately that manual only covers the general use, not how to set the engine timing using flywheel marks.

Thank you though!



[ILENGINE]

lineup flywheel timing mark to timing mark on ignition module. and Camshaft timing mark to crankcase timing mark.



[StarTech]

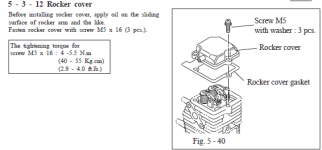

Try this. Should be what you are looking for...Different four stroke Makita but according the IPL looks like the same setup.



[silveris]

I will give it a look first thing! The pics looks a bit unfamiliar but as long as I can find the coil mark I should be fine.

Much appreciated, I will let you know.



[silveris]

lineup flywheel timing mark to timing mark on ignition module. and Camshaft timing mark to crankcase timing mark.

Got it, will apply tomorrow!



[silveris]

Got it, will apply tomorrow!

Much appreciated!
