Have replaced the starter solenoid, starter and ignition switch. When ignition switch is put into the start position I get a loud click that sounds like it is coming from the engine area but the starter will not engage. My fuse block also has an issue. There are 3 fuses in the block, the center one is a 20 amp and has melted into the plastic. When I looked at the backside of the fuse block there is a wire running to the top prong and at the bottom prong position there is nothing, no wire or anything. There is not a loose wire which has heated and dropped off, nothing. It looks as if the bottom part where the other leg of the fuse should go has never had a crimp or anything attached, what should go there. I am imagining this may be were my no start is. I believe this is a mower made in 2007.
John Deere Z225 non start +
- Thread starter Fastair
- Start date
-
- Tags
- john deere
bertsmobile1
Lawn Royalty
- Joined
- Nov 29, 2014
- Threads
- 65
- Messages
- 24,945
Remove the spark plug & try again.
Remove the belts from the pulleys and try turning the engine over by hand
JD do not sell the fuse block, just the entire harness
However it is a 2 x 4 headlamp fuse box used on a lot of US cars till the 80's and readily available from old car parts shops and usually on ebay
JD fuse holder
Aptiv 12004943
4 single terminals output side
2 double terminals input side
Mouser No 829-12004943 .They come with 8 single crimp connectors + 1 x 4 way connector so you cut the 4 way into 2 x 2 ways for your mower
The 20A main fuse usually over heats & melts the fuse holder because of a bad ground contact between the battery and the engine .
It loosens off at the engine bolt
I replace it with a woven flat ground strap ( again from an auto store )
And yes the 20A fuse has a wire on both ends .
I thought I had a wiring diagram for it but I don't .
Remove the belts from the pulleys and try turning the engine over by hand
JD do not sell the fuse block, just the entire harness
However it is a 2 x 4 headlamp fuse box used on a lot of US cars till the 80's and readily available from old car parts shops and usually on ebay
JD fuse holder
Aptiv 12004943
4 single terminals output side
2 double terminals input side
Mouser No 829-12004943 .They come with 8 single crimp connectors + 1 x 4 way connector so you cut the 4 way into 2 x 2 ways for your mower
The 20A main fuse usually over heats & melts the fuse holder because of a bad ground contact between the battery and the engine .
It loosens off at the engine bolt
I replace it with a woven flat ground strap ( again from an auto store )
And yes the 20A fuse has a wire on both ends .
I thought I had a wiring diagram for it but I don't .
StarTech
Lawn Royalty
- Joined
- Feb 19, 2020
- Threads
- 86
- Messages
- 11,048
I have differ on the 12004943 coming with terminals from Mouser as the ones I ordered didn't come with any terminals.

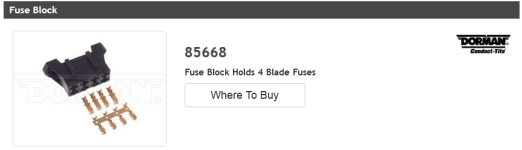

Now the Dorman 85668 does comes with terminals.
Uses Buss bar 12045285 12-10 ga and 4 ea Terminal 12020321 16-14 ga.
Now the above schematic the 12045285 would need to be cut in half as to have two different supply points.
Now the Dorman 85668 does comes with terminals.
Uses Buss bar 12045285 12-10 ga and 4 ea Terminal 12020321 16-14 ga.
Now the above schematic the 12045285 would need to be cut in half as to have two different supply points.
