john deere 757 ztrak

[StarTech]

According to switch labeling you have the wrong switch.



Don't use the Oregon aftermarket switch as it will rust and fail. Simply poor quality.



[ACF]

i picked up the following one from john deere dealership tca22740 and the drawing i sent was from the one i got from john deere



[StarTech]

i picked up the following one from john deere dealership tca22740 and the drawing i sent was from the one i got from john deere

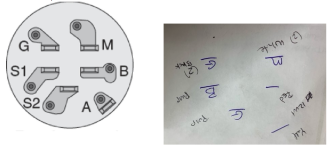

Then whoever at JD sent you the drawing has no idea of what they are drawing. Wire positions are correct but their terminal labeling is wrong which suggest they are looking at the wrong switch.

I just verified that the Stens 430-128 ohms out correctly here. as a replacement for the TCA22740 per the make break table I posted. So ohm out the current per that table. Also note the Stens doesn't have any labeling on it. Also this switch is the Indak 4A463A switch.


Off position contact only between M and G
On position contact only between B and A
Start position there should contact between B and A and separately S1 and S2.

Here is the full wiring schematic for the 757 Ztrak.



[ACF]

Then whoever at JD sent you the drawing has no idea of what they are drawing. Wire positions are correct but their terminal labeling is wrong which suggest they are looking at the wrong switch.

I just verified that the Stens 430-128 ohms out correctly here. as a replacement for the TCA22740 per the make break table I posted. So ohm out the current per that table. Also note the Stens doesn't have any labeling on it. Also this switch is the Indak 4A463A switch.

View attachment 70095
Off position contact only between M and G
On position contact only between B and A
Start position there should contact between B and A and separately S1 and S2.

Here is the full wiring schematic for the 757 Ztrak.
View attachment 70094

got sterns key switch in replaced no change , did change the wiring took the red wire that was connected to b on jd switch and changed out with purple wire got nothing
