Honda mower struggles.

Scrubcadet10

Moderator
Staff member
Joined
Sep 24, 2017
Threads
266
Messages
6,633
which is about what Jane (not Tarzan) can apply with a common 10mm "nut driver". DO NOT re-install those nuts with a wrench or socket, and definitely not with an impact wrench.


A common nut driver.

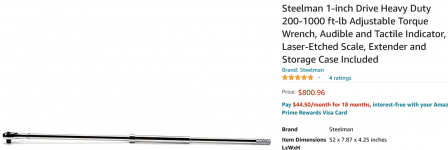

nah, this is what you need 1616865668962.png ?


Rednec

Member
Joined
Aug 1, 2018
Threads
2
Messages
17
Very common when trying to remove the starter cord assembly. As one of the previous poster stated just keep turning and the studs will back out of the engine block. Repeat this procedure with all three studs until you can remove the whole fan shroud. After you get it remove you will have to use a pair of vice grips on the stud bolt to hold it to break loose the nut. When reinstalling, put some lock tite on the stud bolts before screwing them back in the block and then don't tighten the nuts so tight.


RobertBarr

Forum Newbie
Joined
Jul 13, 2017
Threads
0
Messages
2
My solution, on one troublesome stud, was to replace the OEM nut with a nylon-filled nut, just a simple M6x1. You can just snug that nut down, and the nylon filling will prevent the nut from backing out from vibration, etc.
