A part Under the carburetor bowl shorted out and burned. I can’t seem to find the part number for it or the part number for the wire leading to it.
I attached photos. Shown is the listing for the washer above the part numbered 11 washer

Sorry it is a John Deere E110.

That is called the fuel shut off solenoid, when the ignition is turned on the plunger on the end of the tip goes down and allows fuel to come into the bowl. The picture however looks like that was snipped meaning it is useless. This was probably done because of the electric issue your seeing now. It’s not a necessary part and the mower will still run fine without it.

That's an afterfire solenoid, it cuts off fuel through the main jet preventing afterfire so are fuel won't blow in the muffler. A result of Government reach by the EPA.
In that listing, #10 is what you need.
Also ought to figure out why it shorted.

Scrubcadet10 said:

That's an afterfire solenoid, it cuts off fuel through the main jet preventing afterfire so are fuel won't blow in the muffler. A result of Government reach by the EPA.
In that listing, #10 is what you need.
Also ought to figure out why it shorted.

Click to expand...

#10! Of course. My dumb a$@ didn’t see that. Thanks so much! Any idea how to find the part number for the wire that leads to it?

I think that *might* be found from the engine manufacturer, im not seeing it in ANY parts diagrams.... However,i noticed when i punched the PN on other stores, it calls it a solenoid kit, so i *assume* it comes with the wire.
Could you provide the engine model number?

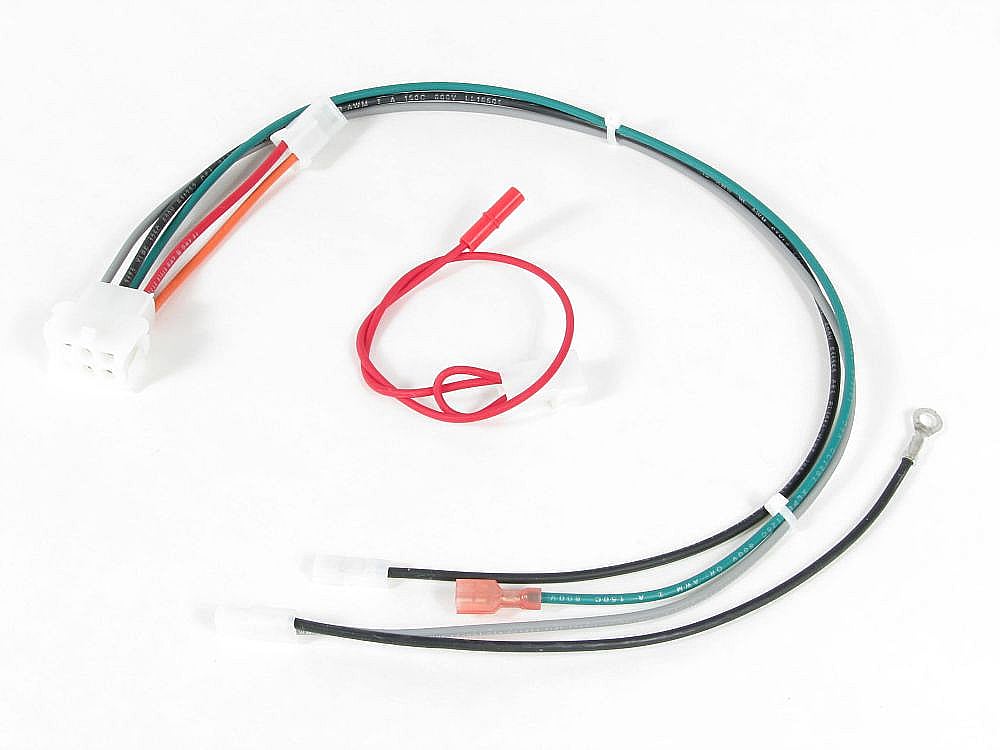

According JD the E110 has the 33R877-0027-G1 and the harness your looking at is PN 698329. Note the wire colors maybe different than the original harness.

You guys are on the ball!
This is my first time on this site and I’m duly impressed. I never expected such prompt and expert opinions. Thank you all.

Ok last question, hopefully.
I searched for PN698329 on several web sites including John Deere and not there. Any idea where I can find this?

You don't use the PN that stands for part number.

698329 Google Search

Thanks. Got it.
hopefully it comes soon.
my wife is gonna get tired using the push mower!
Lol
