HELP HRR216 vxa Rear Height Lever Replacement

[aggie_67]

Have been an DIY for 68 yrs and thought this would be an easy job but swear the part must have been welded in as I can't figure out for the life of me how to get to it. Cut to the chase, have removed the wheel, cover, etc and am presently at the picture below:

Want to replace lever height adjust level.



[Crownman]

When I took a 2167VKA apart there was a snap ring on the axle. The outermost piece on the axle in your pic was the same size but was just a spacer and the snap ring was behind it. See if that piece might just be held on tight with a little rust. If it does I bet there's a snap ring behind it.



[robert@honda]

Want to replace lever height adjust level.

Some versions of the HRR216VXA have a single lever to adjust the rear height, while others use a separate lever for each rear wheel. Which type do you have?

I can post some exact diagrams for either. If you're not sure, on the back of the mower deck is a serial number sticker, look for the serial number in the form of MXXX-1234567 and share that with me so I can reference the correct materials/documents...



[aggie_67]

Some versions of the HRR216VXA have a single lever to adjust the rear height, while others use a separate lever for each rear wheel. Which type do you have?

I can post some exact diagrams for either. If you're not sure, on the back of the mower deck is a serial number sticker, look for the serial number in the form of MXXX-1234567 and share that with me so I can reference the correct materials/documents...

It is a single lever, SN MZCG 7876841



[robert@honda]

Here's the part list and the R&R procedure for the trans, which shows how to remove the adjuster parts...



[mbergertn]

Can anyone provide the part number for the read deck adjustment lever? Mine broke this morning and I need to replace it.



[robert@honda]

Can anyone provide the part number for the read deck adjustment lever? Mine broke this morning and I need to replace it.

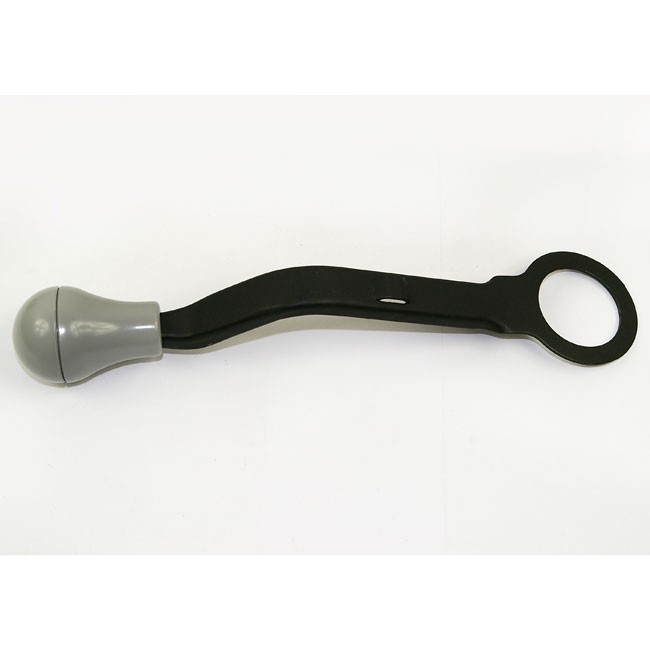

Should be 42960-VL0-B00ZA, list price $9.70.
