Craftsman leaf blower fuel primer bulb

#1

H

Hubba

Folk I have a Craftsman leaf blower 4 cycle model no 316.79461.1, I need a part no for the fuel primer bulb and the best place to order it from? Any help will be welcomed.


#2

StarTech

StarTech

Appears to have a Walbro carburetor. It looks like on the WYLs but need the model number off the carburetor to be sure.

Currently I say it needs the Walbro 188-12-8 but without the model number it is just a guess.


#3

R

Rivets

Carb # 753-05908. Roughly $40.00. For individual part numbers we will need carb manufacturer and number. You will find these on the carb.


#4

H

Hubba

StarTech said:
Appears to have a Walbro carburetor. It looks like on the WYLs but need the model number off the carburetor to be sure.

Currently I say it needs the Walbro 188-12-8 but without the model number it is just a guess.
Click to expand...
Thanks so much.


#5

H

Hubba

Rivets said:
Carb # 753-05908. Roughly $40.00. For individual part numbers we will need carb manufacturer and number. You will find these on the carb.
Click to expand...
I only need a fuel primer bulb. But thank you.


#6

R

Rivets

That’s why I asked for the numbers off the carb, so I could look up individual parts.


#7

StarTech

StarTech

We both did....My guess was based images of the 753-05908 which looks like the Walbro WYL series.


#8

H

Hubba

Folks, Thank you all for trying to help. I took the old bulb to a local saw shop and they matched it up, For those who wonder why that I didn't do that to start with, Since Covid, I try to stay home and order things that I need. For future reference the part # is 4133 121 2700 thanks again.


#9

R

Rivets

That’s the reason we asked for carb number. With that info we would have been able to look up the primer part number for you. Glad to hear you’ve solved the problem.


#10

StarTech

StarTech

Hubba said:
Folks, Thank you all for trying to help. I took the old bulb to a local saw shop and they matched it up, For those who wonder why that I didn't do that to start with, Since Covid, I try to stay home and order things that I need. For future reference the part # is 4133 121 2700 thanks again.
Click to expand...
Which is exactly what I thought it was except you paid the Stihl price instead of Walbro or Stens 615-740 price.

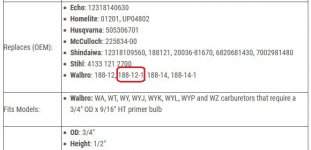

Here is the cross reference.
4133 121 2700 primer.JPG


#11

upupandaway

upupandaway

While not the cheapest route but great for a bind(as was how i learned this) Home Depot sells carb kit that included 2 primers - one of which fits yours.


#12

H

Hubba

upupandaway said:
While not the cheapest route but great for a bind(as was how i learned this) Home Depot sells carb kit that included 2 primers - one of which fits yours.
Click to expand...
I ordered 20 of these for $7 or $8 from Amazon after I got the part #.
