Toro Power GreensMower ID and Parts Help

[outtreking]

Hey everyone. I have this Toro Power GreensMower Model 04023- and Mower No. 00007. The identification plaque was painted with multiple layers of paint and someone must have tried a grinder on it to remove the paint. I cleaned it up and tried to salvage as much information as possible. I can't find any information for this piece of equipment. The only thing I have found about it is a manual on eBay indicating it covers this model and many others. The image on the cover doesn't have the grooved roller or adjustment knobs as installed on the unit I have. I am not sure if this is an optional roller or a different model altogether. Other than the roller, they look very similar. The engine is also not the original equipment.

I am trying to figure out how to do all the proper maintenance and adjustment on the mower and wanting to use it on a new backyard green. Any advice for service and maintenance as well as where to look for parts is very much appreciated.

Thanks, Andy



[Rivets]

Looks like the grooved rollers were options. Do any of these units look like your unit. https://www.turfnet.com/classifieds/category/12-walk-greensmower/ Here’s a parts breakdown for the one I’m looking at. https://www.toro.com/en/parts/partdetails/?id=15552. Can you take a few pics and post them so we know what you have.



[outtreking]

Looks like the grooved rollers were options. Do any of these units look like your unit. https://www.turfnet.com/classifieds/category/12-walk-greensmower/ Here’s a parts breakdown for the one I’m looking at. https://www.toro.com/en/parts/partdetails/?id=15552. Can you take a few pics and post them so we know what you have.

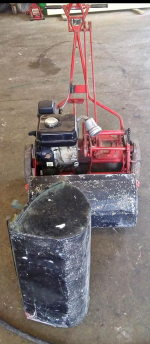

Thanks for the reply. None of the mowers in your link are similar to mine. I believe it either a late 50's or late 60's model. I have pictures of it up now.

Thanks
