Looking for a 1993 made Briggs horizontal 3.5hp manual. It's on a McLane edger.
91202-0149-01 93082303

Wondering since this was pre internet, no pdf is available. The Briggs site doesn't have anything for it. Engine or service manual appreciated.

slomo


slomo

Lawn Addict
Joined
Jul 14, 2019
Threads
76
Messages
4,677
Not a dealer, can't log in to your web site. Thank you anyway StarTech.

slomo


slomo

Lawn Addict
Joined
Jul 14, 2019
Threads
76
Messages
4,677
Would this fit on my carb? Briggs part 5099?

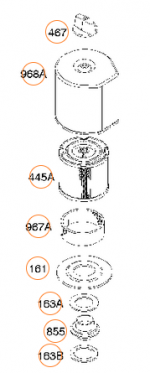

air filter.png

My air filter looks like this.


slomo

Lawn Addict
Joined
Jul 14, 2019
Threads
76
Messages
4,677
I have a pdf of the L head single cylilnder 270962 manual. Not much on MY specific engine for some reason. They made ship loads of these engines. Now all of a sudden they don't exist.

slomo


StarTech

Lawn Royalty
Top Poster Of Month
Joined
Feb 19, 2020
Threads
74
Messages
10,100
Attached is the IPL for your engine. Sorry didn't know they wouldn't allow the linking. Next time I just upload to either my Google or One drives temporarily. Storage is in short supply lately with all the service manuals I have stored on them as a back up of my system here.


Attachments

  • 091202-0149-01 IPL.pdf
    615 KB · Views: 16

slomo

Lawn Addict
Joined
Jul 14, 2019
Threads
76
Messages
4,677
Attached is the IPL for your engine. Sorry didn't know they wouldn't allow the linking. Next time I just upload to either my Google or One drives temporarily. Storage is in short supply lately with all the service manuals I have stored on them as a back up of my system here.
I have that pdf already. THANK YOU for posting and can delete to save your disk space.

What I need is something to show the carb linkages on MY engine. Every 3 or 3.5hp engine I've seen on youtube on a McLane edger has some different linkage setup. Parts pdf file has several springs and linkages.
